Description

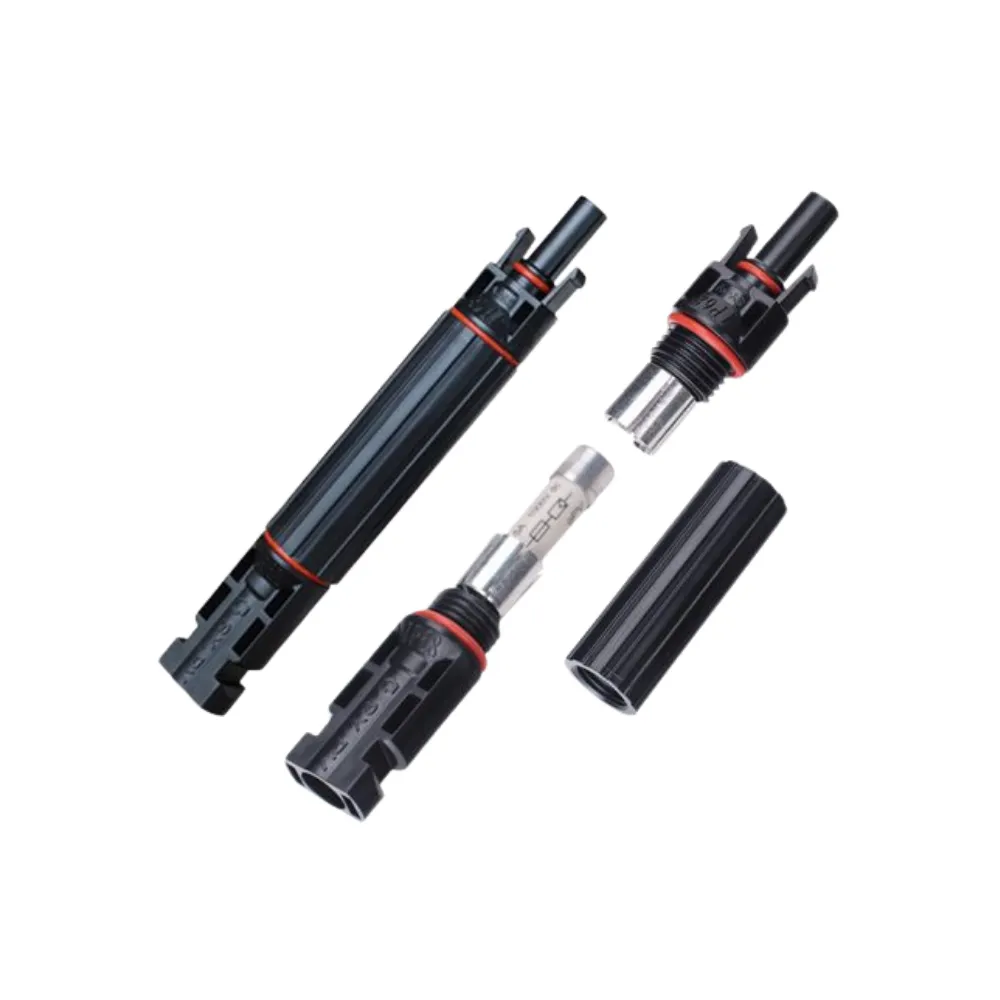

MC4 Inline Fuse Holder is compatible with MC4 connectors suitable to solar cable 2.5 mm2, 4mm2 and 6mm2 in solar connection projects. Use with PV Inline Fuses (sold separately)
It enables quick and reliable connection of the solar cables to the photovoltaic system (solar panels, converters).
MC4 Inline Fuse Holder Features
- Compatible with MC4 cable coupler solar connector PV-KBT4/KST4.
- Rated voltage up to 1000VDC
- Rated Current 10A-20A
- 15 Years of production experience in solar connectors
- TUV-approved & Quick, and easy to install
- Protection class IP68 Suitable for outdoor harsh environments
- Stable connection & reduced maintenance cost
Specifications
MC4 Inline Fuse Holder | ||
|---|---|---|
| Product NO. | SY-CF4A | |
| Insulation material | PPO | |
| Rated Voltage | TUV 1000 DC/ UL 600V DC | |
| Rated Current | 20A-30A | |
| PV Fuse | 10x38mm (1-20A) | |
| Test voltage | 6KV(50Hz,1Min) | |
| Contact material | copper, tin plated | |
| Contact resistance | less than 0.5 m ohm | |
| Degree of protection | IP68 | |
| Pin dimension | 4.0 MM | |
